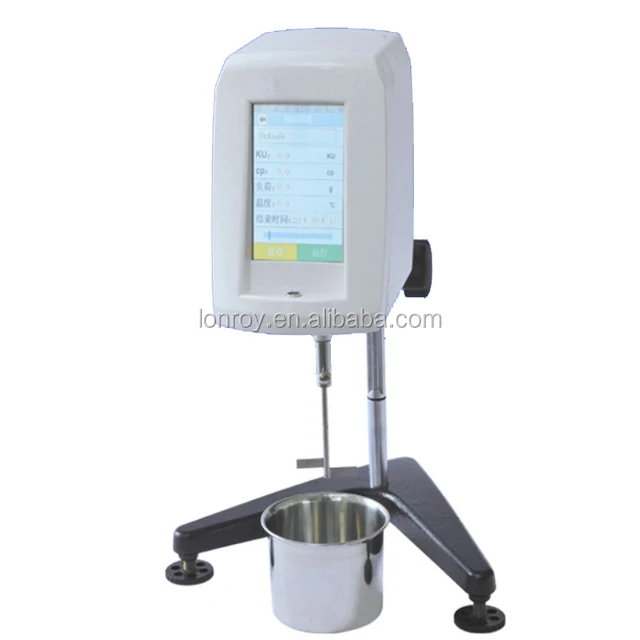

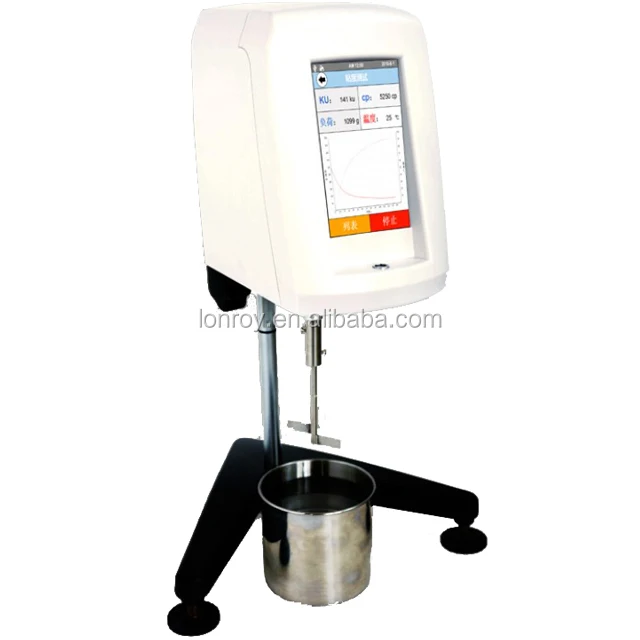

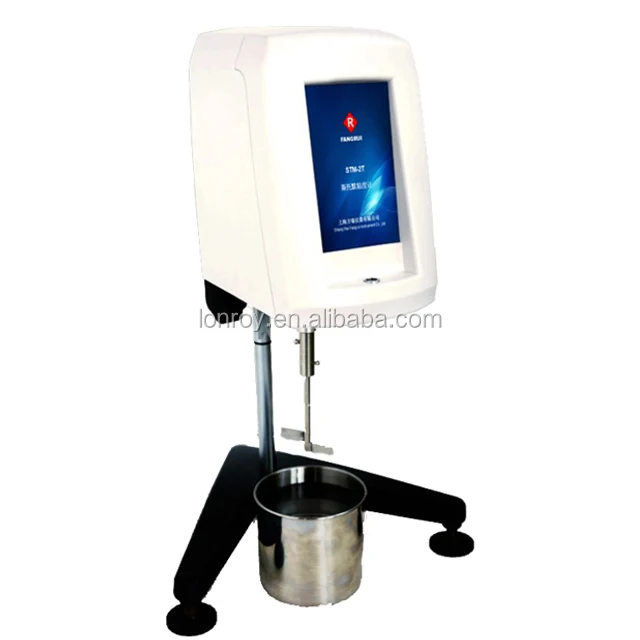

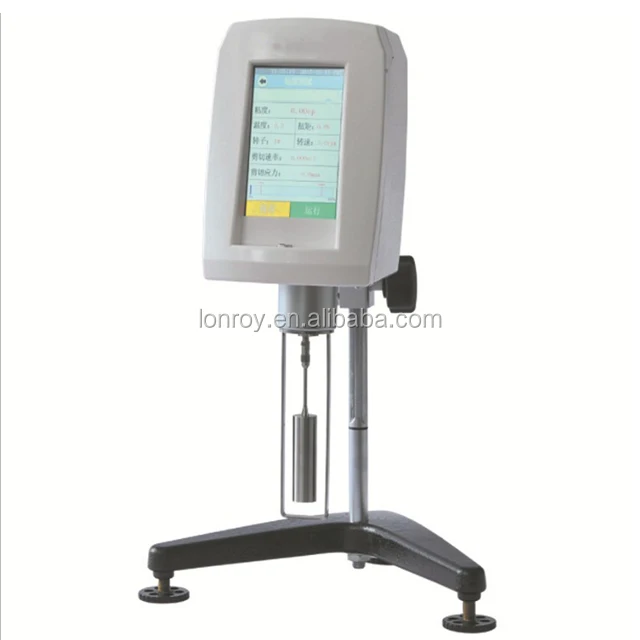

Brookfield Rotational Digital Lab Viscometer Rotary Paint Stomer Krebs Viscosity Meter NDJ RVDV LVDV HADV

Model Number : NDJ-8T

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Price : $750

Display type : 5 inches color touch screen

Speed range : 3/6/12/30/60 r/min

Measuring range : 1~100,000 mPa.s

Rotor types : 1, 2, 3, 4# (standard), 0# (optional)

Measurement error : ±1% (Newtonian liquid)

Repetitive error : ±0.5% (Newtonian liquid)

Timing function : Standard

Temperature measurement : Standard sensor interface (optional sensor)

Automatic scanning : Yes

Shear rate display : Standard

Kinematic viscosity display : Requires sample density input

Data storage capacity : 30 groups

Working voltage : 110V/60Hz or 220V/50Hz

Dimensions : 300 × 300 × 450 mm

Print interface : Standard (printer optional)

Contact Now

Brookfield Rotational Digital Lab Viscometer Rotary Paint Stomer Krebs Viscosity Meter NDJ RVDV LVDV HADV

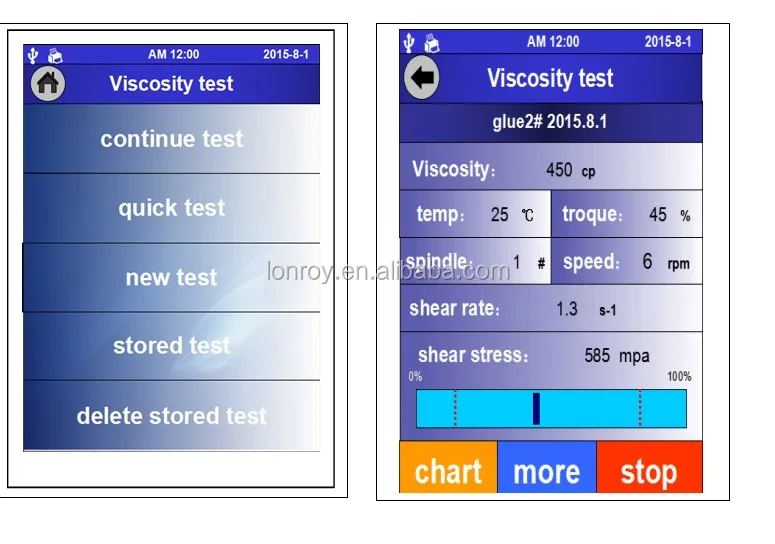

Self-built 30 groups of test program to help users to quickly and accurately obtain the viscosity and the related data of the sample.5 inches large color touch screen can be comprehensive, vividly show various parameters and working conditions.With measuring parameters, display more rich in content, operation is convenient, intuitive, high measurement precision, reading speed stability, strong anti-jamming ability, wide working voltage and other obvious advantages.Can completely replace similar imported equipment, leading the new trend of science and technology of domestic viscometer.

Brookfield Rotational Digital Lab Viscometer Rotary Paint Stomer Krebs Viscosity Meter NDJ RVDV LVDV HADV

Main features:

I. the ARM technology, built-in Linux system.Simple operation interface, through the test program to create and data
Viscosity test analysis, quickly and easily;
II. Viscosity measurement value accurately, each range with computer automatic calibration and high precision, small error;
III. Shows rich content: in addition to viscosity, and temperature, shear rate, shear stress, the measured value of full range value percentage (graphics), the overflow alarm, automatic scanning, the rotor speed under the combination of maximum measuring range, date, time, etc.And in the case of the known density kinematic viscosity, greatly meet the measurement requirement of the user;
IV. The function is all ready, but timing measurement, self-built 30 test program, access 30 group measurement data, the viscosity curve, print data and curve in real time, etc.;
V. lead level, the level adjustment intuitive convenient;
VI. Optional temperature probe, viscometer constant temperature bath, thermostatic cup, printer, standard viscosity sample (standard silicone oil), etc.;
VII. The operating system in English and Chinese.

Widely used in the need to measure the viscosity of fluid and fluid under high temperature and melting.Include paint, coatings, cosmetics, printing ink, paper pulp, food, oil, latex, starch, solvent-based adhesives, biochemical products, etc.

Brookfield Rotational Digital Lab Viscometer Rotary Paint Stomer Krebs Viscosity Meter NDJ RVDV LVDV HADV

Brookfield Rotational Digital Lab Viscometer Rotary Paint Stomer Krebs Viscosity Meter NDJ RVDV LVDV HADV

Detailed technical parameters:

Model

NDJ-5T

NDJ-9T

NDJ-8T

Control/display mode

5 inches color touch screen

speed(r/min)

3/6/12/30/60

0.3/0.6/1.5/3/6/12/30/60

Measuring rangemPa.s

1~100,000

1~2,000,000

(Measuring 10 under low viscosity, equipped with 0 # rotor)

rotor

1, 2, 3, 4#( standard)

0#Rotor( optional)

Measurement error (Newtonian liquid)

±1%

±0.5%

±1%

Repetitive error (Newtonian liquid)

±0.5%

±0.25%

±0. 5%

Timing function

standard

Temperature measurement function

The standard temperature sensor interface temperature sensor (selected)

Automatic scanning function

Automatic scanning and recommend the best combination of rotor and speed

According to maximum measuring range

Combination of rotor and speed automatically according to the selected viscosity range can be measured

Should show shear/shear rate

standard

Automatic display kinematic viscosity

Need to input the density of the sample

Self-built measurement program

Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.)

Save the measurement results

Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.)

Viscosity curve

Real-time display viscosity curve

print

Data, curve can print (standard equipped with print interface, to choose and buy a printer)

Data output interface

standard

Constant temperature parts

Option (viscometer constant temperature trough, thermostatic cup, etc.)

Working power supply

Wide working voltage (110 v / 60 hz or 220 v / 50 hz)

Overall dimensions

300 × 300 × 450(mm)

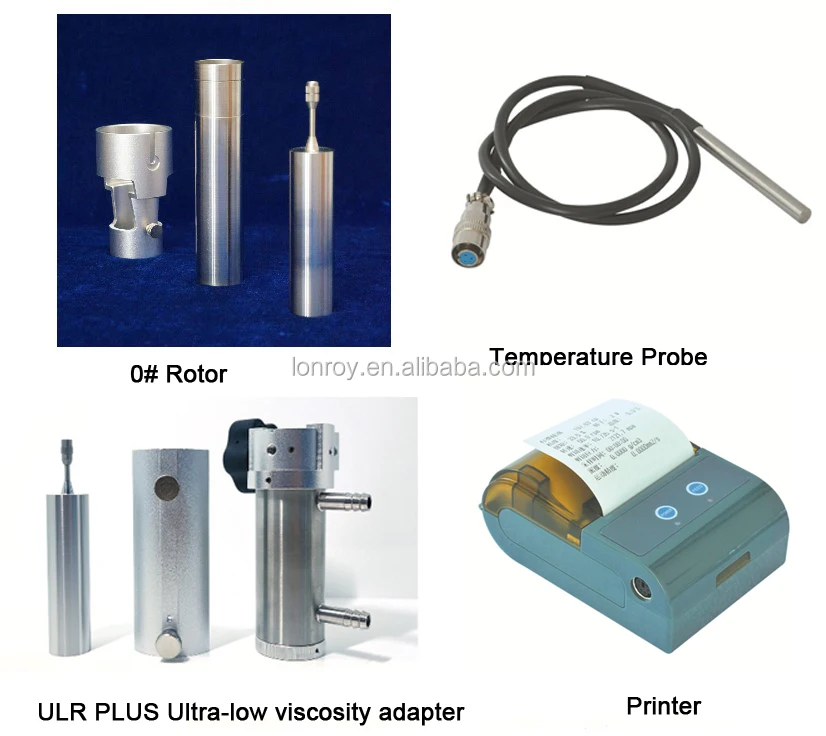

Option:

1. ultra low viscosity adapter (0# rotor)

2. Temperature probe (temperature sensor)

3. Micro thermal printer

4. Viscometer special thermostatic bath
